BMW E23 4 Gauge Console VDO (52mm ) gauges 745i 735i 733i 732i 728i

Regular price
€49,00
Sale price
€49,00
Regular price
Sold out
Unit price
per
Tax included.

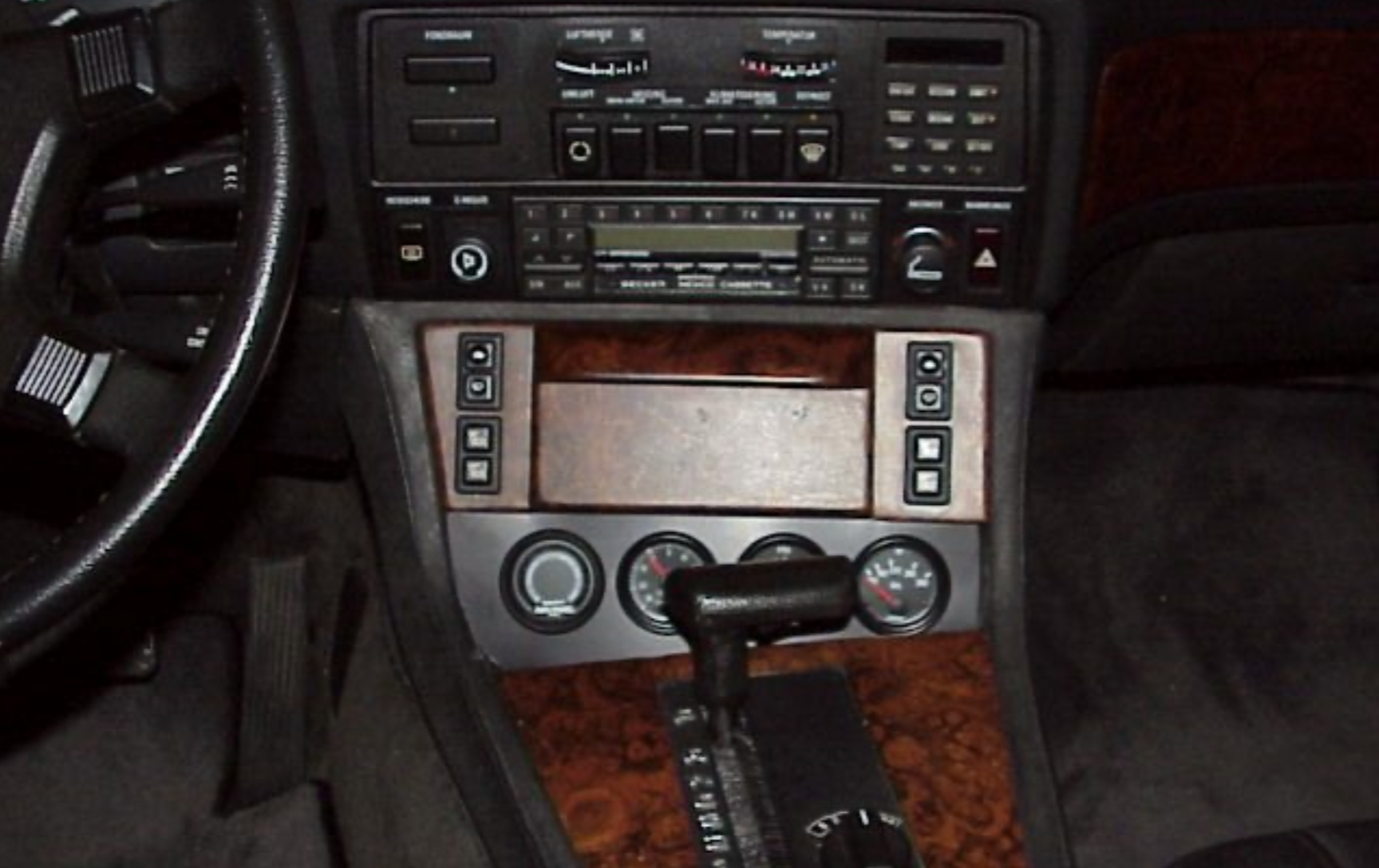

Allows you to add four (4x), 52mm (2.5”) Gauges VDO or AEM Style Gauges to your factory Center Console!

I originally designed and sold this in the early 2000's, with the renewed interest in Classic BMW, I made a 2nd batch available for purchase.

You can see my original 4 Gauge Website and the BMW M106 specific technical info on my archive here.

Mounts behind center ashtray with factory hardware.

Applications: E23 745i with Executive package, E23 Automatic and Manual Transmission Cars (LHD) only.

Cars without leather trimmed console (Executive edition ) may have 1mm side clearance not visible from seated position.

All 5 speed cars without the long wood trim piece around/underneath the shifter boot will also accept this gauge panel.


For wood console it is necessary to either trim 20cm from edge or bend the bottom edge up slightly.


Different trim pieces may vary so dimensions are based on Factory recommended install of the Cassette Box.

If you have the Cassette box remove the box and this panel will take its place.

By using digital sender boost gauge no additional holes are drilled, simply pass signal/power wires behind the ashtray trim piece and route below.

Material Aerospace grade 5052-Aluminum sheet metal with bead blast + Black Anodize Finish Type II (Matte)

- Lightweight and strong design just 55 grams
- Easy and reversible installation
- Remove Center Ashtray and 4 Retaining Screws
- Install wiring behind ashtray plate and attach gauges

No gauges are included.

Nicely matches plastic instrument panel finish.
